Catastrophic backtracking: how can a regular expression cause a ReDoS vulnerability?

Nov 03 2022

Regular expressions come in handy when you need to search for and replace text. However, in some cases, they may cause the system to slow down or even make vulnerable to ReDoS attacks.

1007_ReDoS/image1.png

Introduction

ReDoS is a subtype of a DoS attack. The aim of a ReDoS attack is to halt an application or cause it to slow down via an inefficient regex.

ReDoS attacks can be divided into two types:

  • A string with a malicious pattern is passed to an application. Then this string is used as a regex, which leads to ReDoS.
  • A string of a certain format is passed to an application. Then this string is evaluated by a vulnerable regex, which leads to ReDoS.

The main point of any ReDoS attack is using a vulnerable regular expression in an application. Passing a string of a certain format to a regex leads to its unreasonably long calculation.

If a ReDoS attack is successful, then the regex calculation results in catastrophic backtracking. It is a consequence of the backtracking function in the Regex engine, which iterates through possible string matches until it finds the correct one. If there's no correct match, a regular expression won't stop until it iterates through all possible options. A complete iteration of all possible options leads to an unacceptably long calculation of a regex. This is called catastrophic backtracking.

A regex is vulnerable to catastrophic backtracking if it contains at least one subexpression that may cause a large number of matching options.

Catastrophic backtracking: real examples

Let's inspect several regular expressions for vulnerabilities.

I wrote a small program — it displays a graph of how the calculation time of regex depends on the number of characters in the evaluated string. In next examples, I will use this program to show you the catastrophic backtracking.

Example 1

Let's look at a simple synthetic example:

(x+)+y

Let's compare the calculation time of the (x+)+y expression in two cases:

  • The input to the regular expression accepts strings corresponding to the specified pattern one by one. At the same time the length of each subsequent string is more than the previous one by 1.
  • The input to the regular expression accepts strings that do not match the pattern (there is no y character at the end of the string). At the same time the length of each subsequent string is more than the previous one by 1.

The results of such an experiment are below:

1007_ReDoS/image2.png

Figure 1. The execution time of a regular expression if a string matches the pattern (x+)+y.

1007_ReDoS/image3.png

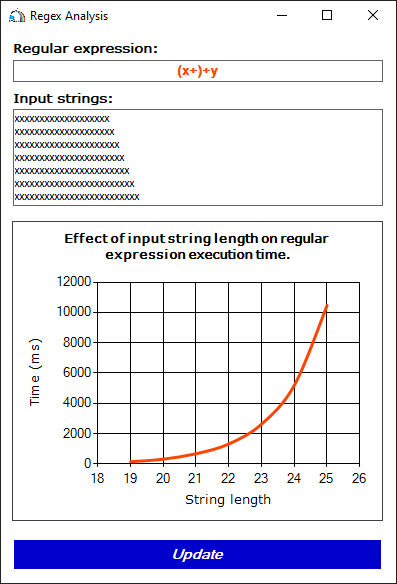

Figure 2. The execution time of a regular expression if a string does not match the (x+)+y pattern (the y character is missing at the end).

As you can see, the strings from the first set are processed instantly. However, the processing of the second set increases exponentially! Why so?

The thing is, in the first case a regular expression finds a match on the first try. When processing strings in the second case, everything becomes very complicated. The x+ template can match any number of x characters. The (x+)+ template can fit a string that consists of one or more substrings corresponding with x+. Because of this, there are many options for matching a string with a regular expression. Their number depends on the length of a substring consisting of x characters. Every time the regular expression does not find the y character, it starts checking the next option. Only after checking all of them, the regular expression gives the answer – no matches were found.

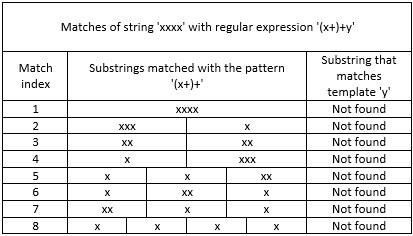

The table below shows several possible matches of the xxxx string with the (x+)+y regex:

1007_ReDoS/image4.png

Fortunately, not all regular expressions are vulnerable to catastrophic backtracking. A regex is vulnerable if it meets the following conditions:

  • There are two subexpressions, and one of them includes another. Besides, one of the following quantifiers is applied to each of them: '*', '+', '*?', '+?', '{...}'. In the previous example, the (x+)+ subexpression includes x+.
  • There is a string that can be matched with both subexpressions. For example, the xxxx string may fit both the x+ and (x+)+ templates.

Expressions of the (\d?|....|[1-9])+ type are a small exception. Here the (\d?|....|[1-9])+ expression includes subexpressions \d? and [1-9]. They are enumerated via the '|' operator. These subexpressions can also fit the same string, for example, 111. In this case, applying the '?' quantifier to one of the subexpressions also results in a vulnerability.

Example 2

We found out that the (x+)+y expression is vulnerable. Now let's change it a bit by adding a check for the presence of another character:

(x+z)+y

Now we have the (x+z)+ subexpression, and the xz and xxxxz strings can be matched to this expression. This subexpression includes the x+ subexpression, which can correspond to strings of x, xxxx, etc. As you can see, these subexpressions cannot be matched with the same values. Thus, the second condition is not met and there's no catastrophic backtracking.

1007_ReDoS/image5.png

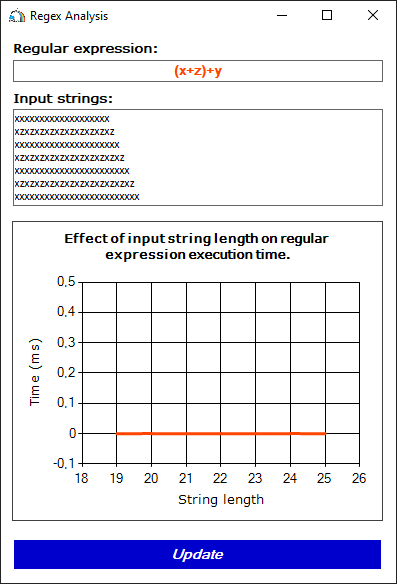

Figure 3. Unsuccessful attempt to "break" a regex with a set of strings, each of them corresponds with either the x+ subexpression or the (x+z)+ subexpression.

Example 3

Now let's look at the next regex:

newDate\((-?\d+)*\)

This regex has a task — search for a substring of the newDate(12-09-2022) type. Can we call this regex safe? No. Besides correct strings, the regex will consider correct the newDate(8-911-111-11-11) and even newDate(1111111111111) strings. However, to understand the essence of the issue, such an expression will be enough for us.

None of the above options will lead to catastrophic backtracking. However, it will happen if we process strings of the 'newDate(1111111111111' type.

1007_ReDoS/image6.png

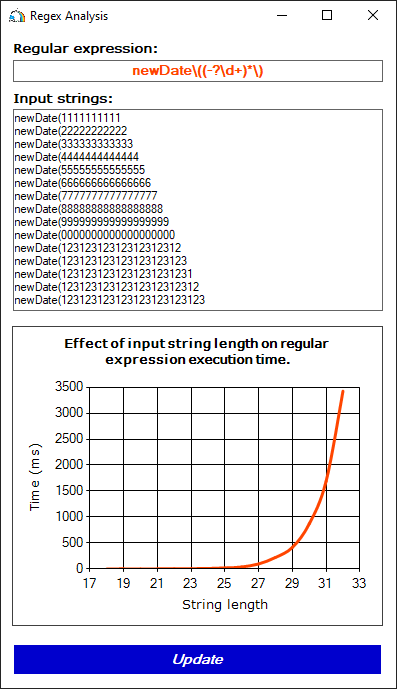

Figure 4. The execution time of the regex checking strings that do not match the pattern (there is no closing parenthesis at the end of the string)

We see catastrophic backtracking again. It happens because of the (-?\d+)* subexpression, which includes the \d+ subexpression. The '*' or '+' quantifiers are applied to both subexpressions and the same string can be matched with each of them, for example, 111.

Let's compare these observations with the previously examined conditions of the regular expression with a vulnerability:

  • There are two subexpressions, and one of them includes another. One of the following quantifiers is applied to each of them: '*', '+', '*?', '+?', '{...}'. The (-?\d+)*) subexpression includes \d+;
  • There is a string that can be matched with both subexpressions. For example, the 1111 string may fit both the \d+ template and (-?\d+)*).

By the way, the newDate\((-?\d+)*\) regex caused a vulnerability (CVE-2021-27293) in a real project – the RestSharp library.

Example 4

As a final example, let's look for vulnerability in a more complex regular expression:

^(([A-Z]:|\\main)(\\[^\\]+)*(,\s)?)+$

The task of this expression is to find strings that represent a list of paths to files or directories. Each element of this list is separated from each other with a comma and a space character. A list item can be represented by a path corresponding to one of two types:

  • full path, for example: D:\catalog\subcatalog\file.txt,
  • relative path from the main folder, for example: \main\catalog\file.exe.

Thus, the string corresponding to the pattern may look like this:

D:\catalog, C:\catalog\file.cs, \main\file.txt, \main\, project\main.csproj

A regular expression will evaluate such strings without any problems.

The same goes for processing almost any incorrect string processing, for example:

D:\catalog\file.cs\catalog\file.cs\catalog\file.cs\catalog\file.cs\catalog\file.cs\catalog\file.cs\\\

However, the situation changes if we pass a string of the following type to a regex:

D:\main\main\main\main\main\main\main\main\main\main\main\main\main\main\main\\\

1007_ReDoS/image7.png

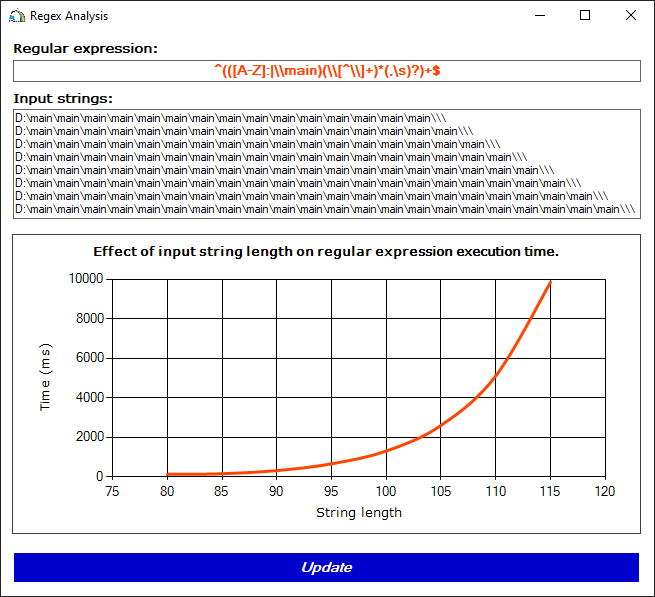

Figure 5. The running time of the regular expression when processing strings of the D:\main ...\main\\\ format.

Let's inspect the original regular expression (^(([A-Z]:|\\main)(\\[^\\]+)*(,\s)?)+$) in more details. Note that subexpressions ([A-Z]:|\\main) and (\\[^\\]+)* that follow each other can be matched with the same \main string. Moreover, the following subexpression ((,\s)?) can be ignored, because the '?' quantifier allows the absence of a match with this template.

Thus, it is possible to simplify the original regular expression to check only one special case – strings of the D:\main ...\main format:

^(([A-Z]:|\\main)(\\main)*)+$

The catastrophic backtracking vulnerability becomes clear when we look at the simplified version of this string.

  • There's a subexpression (([A-Z]:|\\main)(\\main)*)+ with the '+' quantifier. This subexpression includes (\\main)* with the '*' quantifier.
  • Both subexpressions: (([A-Z]:|\\main)(\\main)*)+ and (\\main)* may fit the same string, for example, \main\main\main.

Therefore, both conditions for a vulnerable expression are met.

Let's highlight the main factors that cause catastrophic backtracking in the ^(([A-Z]:|\\main)(\\[^\\]+)*(,\s)?)+$ regular expression:

  • The '+' quantifier is applied to the (([A-Z]:|\\main)(\\[^\\]+)*(,\s)?)+ subexpression;
  • The '*' quantifier is applied to the (\\[^\\]+)* subexpression;
  • Subexpressions ([A-Z]:|\\main) and (\\[^\\]+)* may fit the same \main string;
  • The (,\s)? subexpression can be omitted because of the '?' quantifier.

The absence of at least one of them would make the regular expression absolutely safe.

How to protect from catastrophic backtracking?

Let's look at the main ways to protect a regex from catastrophic backtracking. We'll use the newDate\((-?\d+)*\) as an example. The code below is written in C#. However, the similar functionality probably exists in other programming languages that support regular expressions.

Option 1. Add a limit on execution time for processing a string by a regular expression. In .NET, we can do it by setting the matchTimeout parameter when calling a static method or initializing the new Regex object.

RegexOptions options = RegexOptions.None;
TimeSpan timeout = TimeSpan.FromSeconds(1);
Regex pattern = new Regex(@"newDate\((-?\d+)*\)", options, timeout);
Regex.Match(str, @"newDate\((-?\d+)*\)", options, timeout);

1007_ReDoS/image8.png

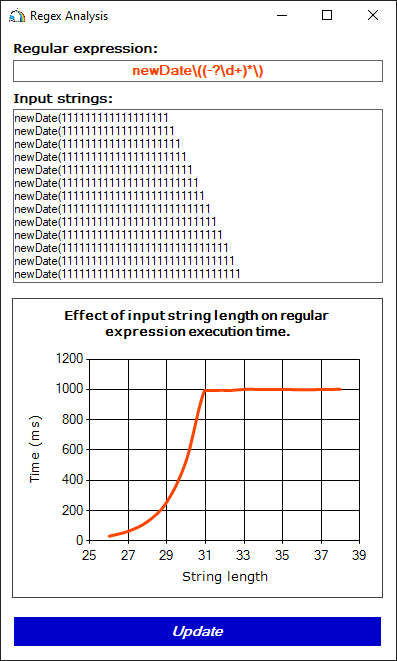

Figure 6. The execution time of a regular expression is limited to one second

Option 2. Use atomic groups (?>...):

Regex pattern = new Regex(@"newDate\((?>-?\d+)*\)");

For expressions marked as atomic groups, the backtracking function is disabled. Thus, of all possible matching options, an atomic group will always be matched with only one substring containing the maximum number of characters.

Although atomic groups are a reliable way of protection against catastrophic backtracking, we recommend to use them carefully. In some cases, using atomic groups can decrease the accuracy of the regular expression's calculation.

1007_ReDoS/image9.png

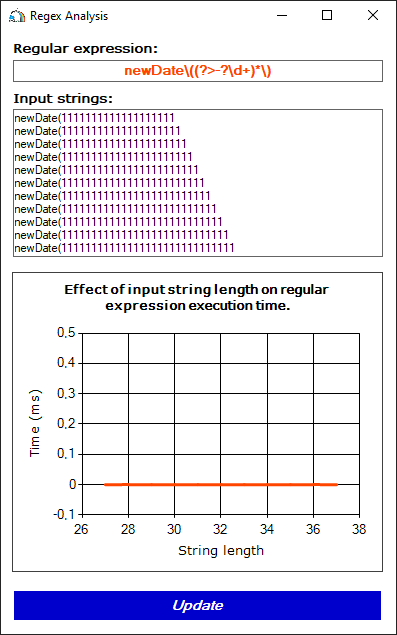

Figure 7. Subexpressions marked as atomic groups are no longer vulnerable to catastrophic backtracking.

Option 3. Rewrite a regex by replacing an unsafe subexpression with a safe equivalent. For example, to find a string of the newDate(13-09-2022) type you can use newDate\((\d{2}-\d{2}-\d{4})\) instead of newDate\((-?\d+)*\).

The latter has two subexpressions: (-?\d+)* and \d+. The \d+ subexpression is included in (-?\d+)*. The same substring can match both these subexpressions. The safe equivalent allows matching any substring with only one template due to the mandatory check of the '-' character between templates \d{...}.

Conclusion

Let's sum up:

  • Regular expressions may be vulnerable to a ReDoS attack, the aim of which is to halt or slow down an application;
  • The application slows down because of catastrophic backtracking. It occurs if there is a huge number of options for matching an input string with a regular expression and there are no correct options among them;
  • A regex is vulnerable to catastrophic backtracking if it contains at least one vulnerable subexpression that may cause a large number of matching options.
  • You can identify a vulnerability in a regular expression by inspecting it for the following conditions:
    • There are two subexpressions, and one of them includes another. One of the following quantifiers is applied to each of them: '*', '+', '*?', '+?', '{...}';
    • There's a string that may fit both these subexpressions.

And that's all for today :). I hope this article was interesting.

Clean code and successful projects to you! See you in next articles!
