PVS-Studio in the Clouds: Travis CI

PVS-Studio in the Clouds: Travis CI

Jun 28 2019
Author:

At the moment, cloud CI systems are a highly-demanded service. In this article, we'll tell you how to integrate analysis of source code into a CI cloud platform with the tools that are already available in PVS-Studio. As an example we'll use the Travis CI service.

To get current information about it follow the updated documentation page "Using with Travis CI".

0636_TravisCI/image1.png

Why do we consider third-party clouds and don't make our own? There is a number of reasons, the main one is that the SaaS implementation is quite an expensive and difficult procedure. In fact, it is a simple and trivial task to directly integrate PVS-Studio analysis into a third-party cloud platform - whether it's open platforms like CircleCI, Travis CI, GitLab, or a specific enterprise solution used only in a certain company. Therefore we can say that PVS-Studio is already available "in the clouds". Another issue is implementing and ensuring access to the infrastructure 24/7. This is a more complicated task. PVS-Studio is not going to provide its own cloud platform directly for running analysis on it.

Some Information about the Used Software

Travis CI is a service for building and testing software that uses GitHub as a storage. Travis CI doesn't require changing of programming code for using the service. All settings are made in the file .travis.yml located in the root of the repository.

We'll take LXC (Linux Containers) as a test project for PVS-Studio. It is a virtualization system at the operation system level for launching several instances of the Linux OS at one node.

The project is small, but more than enough for demonstration. Output of the cloc command:

Language

files

blank

comment

code

C

124

11937

6758

50836

C/C++ Header

65

1117

3676

3774

Note: LXC developers already use Travis CI, so we'll take their configuration file as the basis and edit it for our purposes.

Configuration

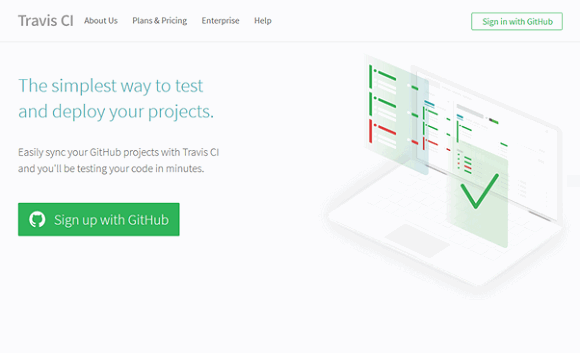

To start working with Travis CI we follow the link and login using a GitHub-account.

0636_TravisCI/image2.png

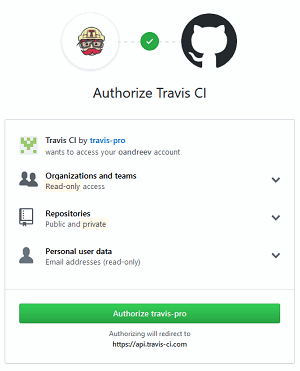

In the open window we need to login Travis CI.

0636_TravisCI/image3.png

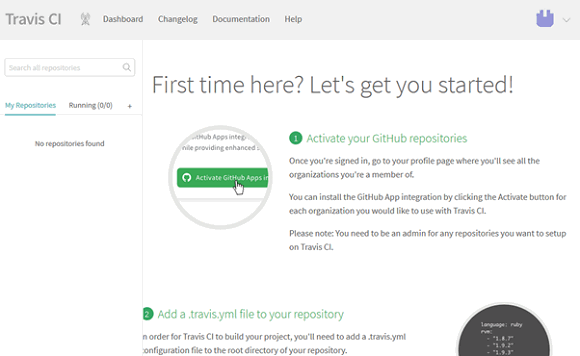

After authorization, it redirects to the welcome page "First time here? Lets get you started!", where we find a brief description what has to be done afterwards to get started:

  • enable the repositories;
  • add the .travis.yml file in the repository;
  • start the first build.
0636_TravisCI/image4.png

Let's start doing these actions.

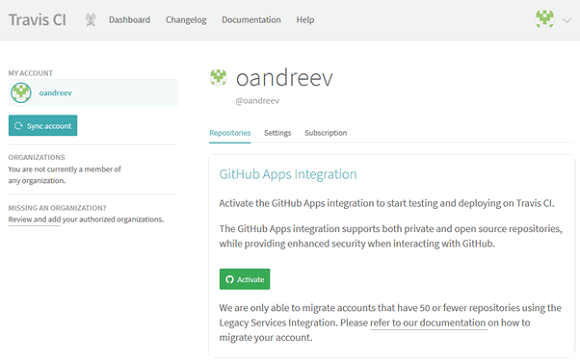

To add our repository in Travis CI we go to the profile settings by the link and press "Activate".

0636_TravisCI/image5.png

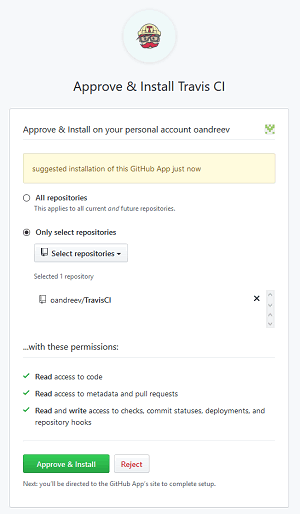

Once clicked, a window will open to select repositories that the Travis CI app will be given access to.

Note: to provide access to the repository, your account must have administrator's rights to do so.

0636_TravisCI/image6.png

After that we choose the right repository, confirm the choice with the "Approve & Install" button, and we'll be redirected back to the profile settings page.

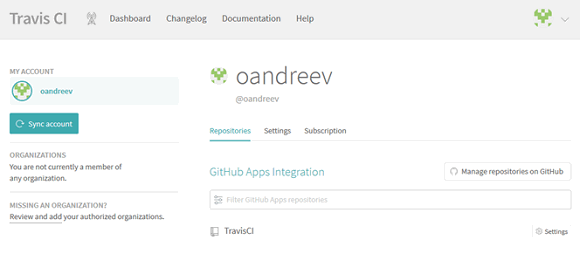

Let's add some variables that we'll use to create the analyzer's license file and send its reports. To do this, we'll go to the settings page - the "Settings" button to the right of the needed repository.

0636_TravisCI/image7.png

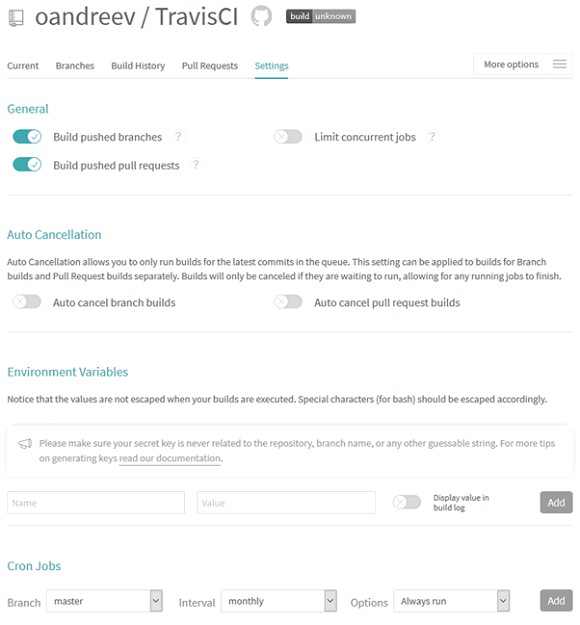

The settings window will open.

0636_TravisCI/image8.png

Brief description of settings;

  • "General" section - configuring auto-start task triggers;
  • "Auto Cancelation" section allows to configure build auto-cancellation;
  • "Environment Variables" section allows to define environment variables that contain both open and confidential information, such as login information, ssh-keys;
  • "Cron Jobs" section is a configuration of task running schedule.

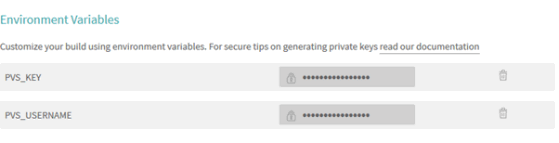

In the section "Environment Variables" we'll create variables PVS_USERNAME and PVS_KEY containing a username and a license key for the static analyzer respectively. If you don't have a permanent PVS-Studio license, you can request a trial license.

0636_TravisCI/image9.png

Right here we'll create variables MAIL_USER and MAIL_PASSWORD, containing a username and an email password, which we'll use for sending reports.

0636_TravisCI/image10.png

When running tasks, Travis CI takes instructions from the .travis.yml file, located in the root of the repository.

By using Travis CI, we can run static analysis both directly on the virtual machine and use a preconfigured container to do so. The results of these approaches are no different from each other. However, usage of a pre-configured container can be useful. For example, if we already have a container with some specific environment, inside of which a software product is built and tested and we don't want to restore this environment in Travis CI.

Let's create a configuration to run the analyzer on a virtual machine.

For building and testing we'll use a virtual machine on Ubuntu Trusty, its description is available by the link.

First of all, we specify that the project is written in C and list compilers that we will use for the build:

language: c
compiler:
 - gcc
 - clang

Note: if you specify more than one compiler, the tasks will run simultaneously for each of them. Read more here.

Before the build we need to add the analyzer repository, set dependencies and additional packages:

before_install:
 - sudo add-apt-repository ppa:ubuntu-lxc/daily -y
 - wget -q -O - https://files.pvs-studio.com/etc/pubkey.txt |sudo apt-key add -
 - sudo wget -O /etc/apt/sources.list.d/viva64.list
  https://files.pvs-studio.com/etc/viva64.list
 - sudo apt-get update -qq
 - sudo apt-get install -qq coccinelle parallel
       libapparmor-dev libcap-dev libseccomp-dev
       python3-dev python3-setuptools docbook2x
       libgnutls-dev libselinux1-dev linux-libc-dev pvs-studio
       libio-socket-ssl-perl libnet-ssleay-perl sendemail
       ca-certificates

Before we build a project, we need to prepare your environment:

script:
 - ./coccinelle/run-coccinelle.sh -i
 - git diff --exit-code
 - export CFLAGS="-Wall -Werror"
 - export LDFLAGS="-pthread -lpthread"
 - ./autogen.sh
 - rm -Rf build
 - mkdir build
 - cd build
 - ../configure --enable-tests --with-distro=unknown

Next, we need to create a license file and start analyzing the project.

Then we create a license file for the analyzer by the first command. Data for the $PVS_USERNAME and $PVS_KEY variables is taken from the project settings.

- pvs-studio-analyzer credentials $PVS_USERNAME $PVS_KEY -o PVS-Studio.lic

By the next command, we start tracing the project build.

- pvs-studio-analyzer trace -- make -j4

After that we run static analysis.

Note: when using a trial license, you need to specify the parameter --disableLicenseExpirationCheck.

 - pvs-studio-analyzer analyze -j2 -l PVS-Studio.lic
   -o PVS-Studio-${CC}.log
     --disableLicenseExpirationCheck

The file with the analysis results is converted into the html-report by the last command.

- plog-converter -t html PVS-Studio-${CC}.log
                 -o PVS-Studio-${CC}.html

Since TravisCI doesn't let you change the format of email notifications, in the last step we'll use the sendemail package for sending reports:

- sendemail -t mail@domain.com
            -u "PVS-Studio $CC report, commit:$TRAVIS_COMMIT"
            -m "PVS-Studio $CC report, commit:$TRAVIS_COMMIT"
            -s smtp.gmail.com:587
            -xu $MAIL_USER
            -xp $MAIL_PASSWORD
            -o tls=yes
            -f $MAIL_USER
            -a PVS-Studio-${CC}.log PVS-Studio-${CC}.html

Here is the full text of the configuration file for running the analyzer on the virtual machine:

language: c
compiler:
 - gcc
 - clang
before_install:
 - sudo add-apt-repository ppa:ubuntu-lxc/daily -y
 - wget -q -O - https://files.pvs-studio.com/etc/pubkey.txt |sudo apt-key add -
 - sudo wget -O /etc/apt/sources.list.d/viva64.list
          https://files.pvs-studio.com/etc/viva64.list
 - sudo apt-get update -qq
 - sudo apt-get install -qq coccinelle parallel
         libapparmor-dev libcap-dev libseccomp-dev
         python3-dev python3-setuptools docbook2x
         libgnutls-dev libselinux1-dev linux-libc-dev pvs-studio
         libio-socket-ssl-perl libnet-ssleay-perl sendemail
         ca-certificates

script:
 - ./coccinelle/run-coccinelle.sh -i
 - git diff --exit-code
 - export CFLAGS="-Wall -Werror"
 - export LDFLAGS="-pthread -lpthread"
 - ./autogen.sh
 - rm -Rf build
 - mkdir build
 - cd build
 - ../configure --enable-tests --with-distro=unknown
 - pvs-studio-analyzer credentials $PVS_USERNAME $PVS_KEY -o PVS-Studio.lic
 - pvs-studio-analyzer trace -- make -j4
 - pvs-studio-analyzer analyze -j2 -l PVS-Studio.lic
     -o PVS-Studio-${CC}.log
     --disableLicenseExpirationCheck
 - plog-converter -t html PVS-Studio-${CC}.log -o PVS-Studio-${CC}.html

 - sendemail -t mail@domain.com
             -u "PVS-Studio $CC report, commit:$TRAVIS_COMMIT"
             -m "PVS-Studio $CC report, commit:$TRAVIS_COMMIT"
             -s smtp.gmail.com:587
             -xu $MAIL_USER
             -xp $MAIL_PASSWORD
             -o tls=yes
             -f $MAIL_USER
             -a PVS-Studio-${CC}.log PVS-Studio-${CC}.html

To run PVS-Studio in a container, let's pre-create it using the following Dockerfile:

FROM docker.io/ubuntu:trusty

ENV CFLAGS="-Wall -Werror"
ENV LDFLAGS="-pthread -lpthread"

RUN apt-get update && apt-get install -y software-properties-common wget \
    && wget -q -O - https://files.pvs-studio.com/etc/pubkey.txt |
        sudo apt-key add - \
    && wget -O /etc/apt/sources.list.d/viva64.list
       https://files.pvs-studio.com/etc/viva64.list \
    && apt-get update \
    && apt-get install -yqq coccinelle parallel
       libapparmor-dev libcap-dev libseccomp-dev
       python3-dev python3-setuptools docbook2x
       libgnutls-dev libselinux1-dev linux-libc-dev
       pvs-studio git libtool autotools-dev automake
       pkg-config clang make libio-socket-ssl-perl
       libnet-ssleay-perl sendemail ca-certificates \
    && rm -rf /var/lib/apt/lists/*

In this case, the configuration file may look like this:

before_install:
- docker pull docker.io/oandreev/lxc

env:
 - CC=gcc
 - CC=clang

script:
 - docker run
    --rm
    --cap-add SYS_PTRACE
    -v $(pwd):/pvs
    -w /pvs
    docker.io/oandreev/lxc
    /bin/bash -c " ./coccinelle/run-coccinelle.sh -i
                  && git diff --exit-code
                  && ./autogen.sh
                  && mkdir build && cd build
                  && ../configure CC=$CC
                  && pvs-studio-analyzer credentials
                     $PVS_USERNAME $PVS_KEY -o PVS-Studio.lic
                  && pvs-studio-analyzer trace -- make -j4
                  && pvs-studio-analyzer analyze -j2
                     -l PVS-Studio.lic
                     -o PVS-Studio-$CC.log
                     --disableLicenseExpirationCheck
                  && plog-converter -t html
                     -o PVS-Studio-$CC.html
                     PVS-Studio-$CC.log

                  && sendemail -t mail@domain.com
             -u 'PVS-Studio $CC report, commit:$TRAVIS_COMMIT'
             -m 'PVS-Studio $CC report, commit:$TRAVIS_COMMIT'
             -s smtp.gmail.com:587
             -xu $MAIL_USER -xp $MAIL_PASSWORD
             -o tls=yes -f $MAIL_USER
             -a PVS-Studio-${CC}.log PVS-Studio-${CC}.html"

As you can see, in this case we do nothing inside the virtual machine, and all the actions on building and testing the project take place inside the container.

Note: when you start the container, you need to specify the parameter --cap-add SYS_PTRACE or --security-opt seccomp:unconfined, as a ptrace system call is used for compiler tracing.

Next, we load the configuration file in the root of the repository and see that Travis CI has been notified of changes in the project and has automatically started the build.

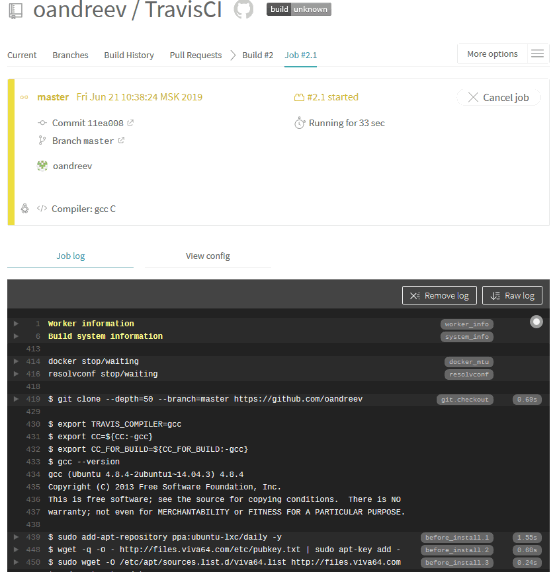

Details of the build progress and analyzer check can be seen in the console.

0636_TravisCI/image11.png

After the tests are over, we will receive two emails: the first - with static analysis results for building a project using gcc, and the second - for clang, respectively.

Briefly About the Check Results

In general, the project is quite clean, the analyzer issued only 24 high-certainty and 46 medium-certainty warnings. Let's look at a couple of interesting notifications:

Redundant conditions in if

V590 Consider inspecting the 'ret != (- 1) && ret == 1' expression. The expression is excessive or contains a misprint. attach.c 107

#define EOF -1

static struct lxc_proc_context_info *lxc_proc_get_context_info(pid_t pid)
{
  ....
  while (getline(&line, &line_bufsz, proc_file) != -1)
  {
    ret = sscanf(line, "CapBnd: %llx", &info->capability_mask);
    if (ret != EOF && ret == 1) // <=
    {
      found = true;
      break;
    }
  }
  ....
}

If ret == 1, it is definitely not equal to -1 (EOF). Redundant check, ret != EOF can be removed.

Two similar warnings have been issued:

  • V590 Consider inspecting the 'ret != (- 1) && ret == 1' expression. The expression is excessive or contains a misprint. attach.c 579
  • V590 Consider inspecting the 'ret != (- 1) && ret == 1' expression. The expression is excessive or contains a misprint. attach.c 583

Loss of High Bits

V784 The size of the bit mask is less than the size of the first operand. This will cause the loss of higher bits. conf.c 1879

struct mount_opt
{
  char *name;
  int clear;
  int flag;
};

static void parse_mntopt(char *opt, unsigned long *flags,
                         char **data, size_t size)
{
  struct mount_opt *mo;

  /* If opt is found in mount_opt, set or clear flags.
   * Otherwise append it to data. */

  for (mo = &mount_opt[0]; mo->name != NULL; mo++)
  {
    if (strncmp(opt, mo->name, strlen(mo->name)) == 0)
    {
      if (mo->clear)
      {
        *flags &= ~mo->flag;    // <=
      }
      else
      {
        *flags |= mo->flag;
      }
      return;
    }
  }
  ....
}

Under Linux, long is a 64-bit integer variable, mo->flag is a 32-bit integer variable. Usage of mo->flag as a bit mask will lead to the loss of 32 high bits. A bit mask is implicitly cast to a 64-bit integer variable after bitwise inversion. High bits of this mask may be lost.

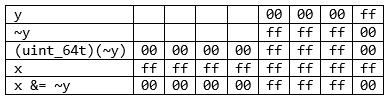

I'll show it using an example:

unsigned long long x;
unsigned y;
....
x &= ~y;
0636_TravisCI/image12.png

Here is the correct version of code:

*flags &= ~(unsigned long)(mo->flag);

The analyzer issued another similar warning:

  • V784 The size of the bit mask is less than the size of the first operand. This will cause the loss of higher bits. conf.c 1933

Suspicious Loop

V612 An unconditional 'return' within a loop. conf.c 3477

#define lxc_list_for_each(__iterator, __list) \
  for (__iterator = (__list)->next; __iterator != __list; \
          __iterator = __iterator->next)

static bool verify_start_hooks(struct lxc_conf *conf)
{
  char path[PATH_MAX];
  struct lxc_list *it;

  lxc_list_for_each (it, &conf->hooks[LXCHOOK_START]) {
    int ret;
    char *hookname = it->elem;

    ret = snprintf(path, PATH_MAX, "%s%s",
             conf->rootfs.path ? conf->rootfs.mount : "",
             hookname);
    if (ret < 0 || ret >= PATH_MAX)
      return false;

    ret = access(path, X_OK);
    if (ret < 0) {
      SYSERROR("Start hook \"%s\" not found in container",
         hookname);
      return false;
    }

    return true; // <=
  }

  return true;
}

The loop is started and interrupted on the first iteration. This might have been made intentionally, but in this case the loop could have been omitted.

Array Index out of Bounds

V557 Array underrun is possible. The value of 'bytes - 1' index could reach -1. network.c 2570

static int lxc_create_network_unpriv_exec(const char *lxcpath,
                                          const char *lxcname,
                                          struct lxc_netdev *netdev,
                                          pid_t pid,
                                          unsigned int hooks_version)
{
  int bytes;
  char buffer[PATH_MAX] = {0};
  ....
  bytes = lxc_read_nointr(pipefd[0], &buffer, PATH_MAX);
  if (bytes < 0)
  {
    SYSERROR("Failed to read from pipe file descriptor");
    close(pipefd[0]);
  }
  else
  {
    buffer[bytes - 1] = '\0';
  }
  ....
}

Bytes are read in the buffer from the pipe. In case of an error, the lxc_read_nointr function will return a negative value. If all goes successfully, a terminal null is written by the last element. However, if 0 bytes are read, the index will be out of buffer bounds, leading to undefined behavior.

The analyzer issued another similar warning:

  • V557 Array underrun is possible. The value of 'bytes - 1' index could reach -1. network.c 2725

Buffer Overflow

V576 Incorrect format. Consider checking the third actual argument of the 'sscanf' function. It's dangerous to use string specifier without width specification. Buffer overflow is possible. lxc_unshare.c 205

static bool lookup_user(const char *oparg, uid_t *uid)
{
  char name[PATH_MAX];
  ....
  if (sscanf(oparg, "%u", uid) < 1)
  {
    /* not a uid -- perhaps a username */
    if (sscanf(oparg, "%s", name) < 1) // <=
    {
      free(buf);
      return false;
    }
    ....
  }
  ....
}

In this case, usage of sscanf can be dangerous, because if the oparq buffer is larger than the name buffer, the index will be out of bounds when forming the name buffer.

Conclusion

As we see, it's a quite simple task to configure a static code analyzer check in a cloud. For this, we just need to add one file in a repository and spend little time setting up the CI system. As a result, we'll get a tool to detect problem at the stage of writing code. The tool lets us prevent bugs from getting to the next stages of testing, where their fixing will require much time and efforts.

Of course, PVS-Studio usage with cloud platforms is not only limited to Travis CI. Similar to the method described in the article, with small differences, PVS-Studio analysis can be integrated into other popular cloud CI solutions, such as CircleCI, GitLab, etc.

Useful links

  • For additional information on running PVS-Studio on Linux and MacOS, follow the link.
  • You can also read about creating, setting and using containers with installed PVS-Studio static code analyzer by the link.
  • TravisCI documentation.

Popular related articles
The Evil within the Comparison Functions

Date: May 19 2017

Author: Andrey Karpov

Perhaps, readers remember my article titled "Last line effect". It describes a pattern I've once noticed: in most cases programmers make an error in the last line of similar text blocks. Now I want t…
PVS-Studio for Java

Date: Jan 17 2019

Author: Andrey Karpov

In the seventh version of the PVS-Studio static analyzer, we added support of the Java language. It's time for a brief story of how we've started making support of the Java language, how far we've co…
Static analysis as part of the development process in Unreal Engine

Date: Jun 27 2017

Author: Andrey Karpov

Unreal Engine continues to develop as new code is added and previously written code is changed. What is the inevitable consequence of ongoing development in a project? The emergence of new bugs in th…
Free PVS-Studio for those who develops open source projects

Date: Dec 22 2018

Author: Andrey Karpov

On the New 2019 year's eve, a PVS-Studio team decided to make a nice gift for all contributors of open-source projects hosted on GitHub, GitLab or Bitbucket. They are given free usage of PVS-Studio s…
How PVS-Studio Proved to Be More Attentive Than Three and a Half Programmers

Date: Oct 22 2018

Author: Andrey Karpov

Just like other static analyzers, PVS-Studio often produces false positives. What you are about to read is a short story where I'll tell you how PVS-Studio proved, just one more time, to be more atte…
PVS-Studio ROI

Date: Jan 30 2019

Author: Andrey Karpov

Occasionally, we're asked a question, what monetary value the company will receive from using PVS-Studio. We decided to draw up a response in the form of an article and provide tables, which will sho…
Technologies used in the PVS-Studio code analyzer for finding bugs and potential vulnerabilities

Date: Nov 21 2018

Author: Andrey Karpov

A brief description of technologies used in the PVS-Studio tool, which let us effectively detect a large number of error patterns and potential vulnerabilities. The article describes the implementati…
The Ultimate Question of Programming, Refactoring, and Everything

Date: Apr 14 2016

Author: Andrey Karpov

Yes, you've guessed correctly - the answer is "42". In this article you will find 42 recommendations about coding in C++ that can help a programmer avoid a lot of errors, save time and effort. The au…
Appreciate Static Code Analysis!

Date: Oct 16 2017

Author: Andrey Karpov

I am really astonished by the capabilities of static code analysis even though I am one of the developers of PVS-Studio analyzer myself. The tool surprised me the other day as it turned out to be sma…
Characteristics of PVS-Studio Analyzer by the Example of EFL Core Libraries, 10-15% of False Positives

Date: Jul 31 2017

Author: Andrey Karpov

After I wrote quite a big article about the analysis of the Tizen OS code, I received a large number of questions concerning the percentage of false positives and the density of errors (how many erro…

Comments (0)

Next comments
This website uses cookies and other technology to provide you a more personalized experience. By continuing the view of our web-pages you accept the terms of using these files. If you don't want your personal data to be processed, please, leave this site.
Learn More →
Accept
